TC-096G Optimus 96G Gradient Thermal Cycler-new
TC-096G Optimus 96G Gradient Thermal Cycler 2-new
Products • Thermal Cyclers

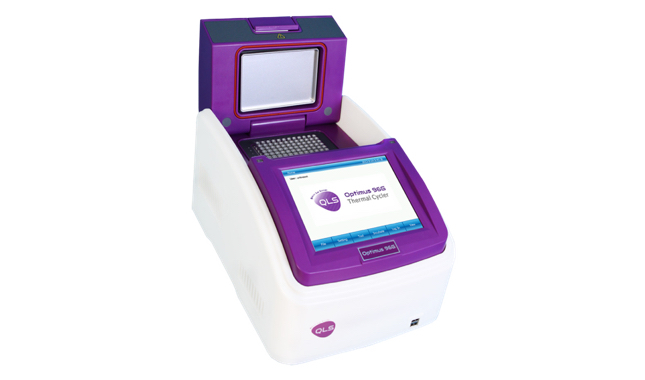

Optimus 96G Gradient Thermal Cycler

Left arrow
Right arrow
Model Ref:
TC-096G

Overview:
Optimus 96G Gradient Thermal Cycler is an advanced thermal cycler with peltier based technology making it more accurate and reliable. Optimus 96G has high heating and cooling rate, uniform temperature across the block surface, 96 wells block, large data storage capacity and 8 inch color touch-screen.
Features
  • Thermal block has 3 independent temperature control sensors and 6 peltier heating units to ensure accurate & uniform temperature across the block surface
  • Windows interface, 8 inch (800*600 pixel, 16 colours)
  • TFT colour touch- screen with graphical display provides easy use for setting up and monitoring
  • The actual & target temperatures can be viewed & graphically displayed in real time
  • Built-in 11 standard program file template, can quickly edit the required files
  • Internal memory for 10000 typical PCR files in free configurable folders
  • Automatic restart after power failure
  • Adjustable hot lid, fit tubes of different heights
  • Reinforced aluminium module with anodizing technology to keep rap- id heat-conducting property & have enough corrosion resistance
  • Compatible with devices such as mouse & keyboard and capable to transfer data and perform software updates via USB Drive
  • Supplied with 12 x 1.5ml / 2ml micro tube rotor
Specifications
Sample Capacity: 96 x 0.2ml
Peltier Quantity: 6
Block Material: Aluminium Alloy
Temperature Range (˚C): 0-100˚C
Heating Rate (˚C/sec): 4˚C/sec
Cooling Rate (˚C/sec): 3˚C/sec
Control Accuracy (˚C): ±0.1 (30-99.9˚C)
Uniformity (˚C): ±0.2 (30-72˚C, 10s) / ±0.3 (90˚C, 10s)
Control Mode: Block, Tube
Hot-lid Temperature (˚C): 30-110˚C
Gradient Range (˚C): 1-30˚C
Minimum Gradient Temp. (˚C): 30˚C
Maximum Gradient Temp. (˚C): 100˚C
Display Screen: 8 inch, 800x600 Pixels, TFT, TOUCH
Programs Saving: 10000 files + (USB Flash)
Power-off Recovery: Yes
Temperature Time Increase/Decrease Progressively: Yes
Pause Function: Yes
Edit File While Running: Yes
Support For USB Mouse: Yes
Support For Touch Screen: Yes
Connection: USB, Ethernet
Network Control: Yes
PC Control Software: Yes
Input Voltage: AC85-264V, 50/60Hz
Input Power: 600W
Ordering Information
TC-O96G: Optimus 96G Gradient thermal cycler, UK plug
